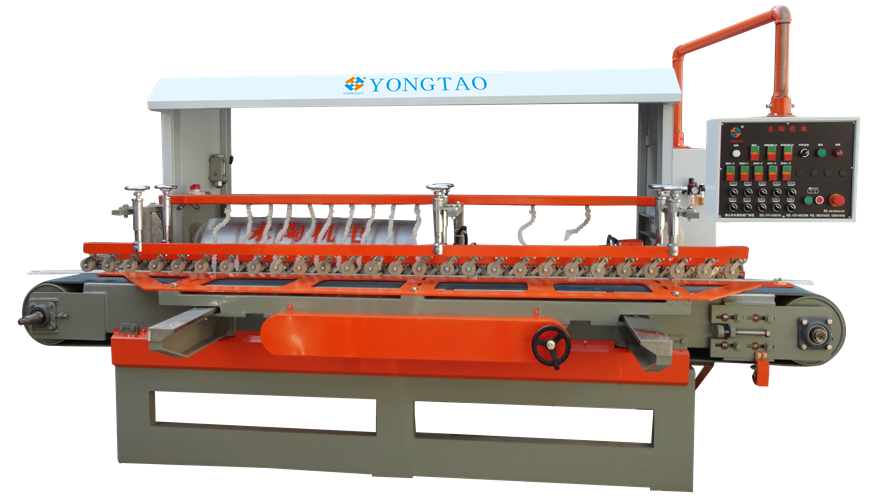

YSMDP-800 1+2+8 Stone Bevel Edge Polishing Machine
Yongtao Machinery is China's Stone Bevel Edge Polishing Machine Manufacturer, processing marble and stone chamfering polishing, using Yongtao high-quality stone machinery!
Product introduction
YSMDP-800 1+2+8 Stone Bevel Edge Polishing Machine is the latest chamfering machine by Yongtao machinery for 45 degree edge chamfer and polishing. The machine have one squaring wheel, two 45 degree chamfer wheels and eight 45 degree polishing wheels. It can process marble, granite, artificial stone, quartz etc. The squaring wheel and chamfer wheel use diamond material. The polishing head use air cylinder, polishing cup and polishing pad assembly. The machine can automatically polish the same width slab in one batch processing. The squaring wheel and chamfer wheel are adjusted by manual, while the polishing wheels are controlled by air cylinder though PLC. This machine have the advantage of reasonable design, simple operation, high processing speed, good effect of products. It is popular in lots of stone processing factories.
Stone Bevel Edge Polishing Machine:
Technical Parameter of YSMDP-800 1+2+8 Stone Bevel Edge Polishing Machine
We are professionalchamfering machine manufacturers and we provide high-quality Marble chamfering machine for you.
Machine specifications
| Numbers of squaring wheel | 1pc |
|---|---|
| Motor power of squaring wheel | 3kw |
| Numbers of chamfer wheel | 2pc |
| Motor power of chamfer wheel | 3kw |
| Numbers of 45 polishing head | 8pc |
| Diameter of polishing disc | 125mm |
| Motor power of polishing head | 2.2kwX4pc |
| Pressing width | 80-800mm |
| Processing thickness | 10-60mm |
| Processing speed | 1-5.0m/min |
| Total power | 20.05kw |
| Electric consumption | 18kw/H |
| Water consumption | 450L/min |
| Size of machine | 4.20m×2.00m×1.80m |
| Weight | 3000kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
